Genuine RS 305-254 ( 709 ) I.C. Operational Amplifier 14 Pin DIL OMB2-03

Radio Spares (RS) Op Amp

RS no. 305-254 (709)

LM709 Operational Amplifier

 General Description

 The LM709 series is a monolithic operational amplifier intended for general-purpose applications. Operation is completely specified over the range of voltages commonly used for these devices.

The design, in addition to providing high gain, minimises both offset voltage and bias currents.

Further, the class-B output stage gives a large output capability with minimum power drain.

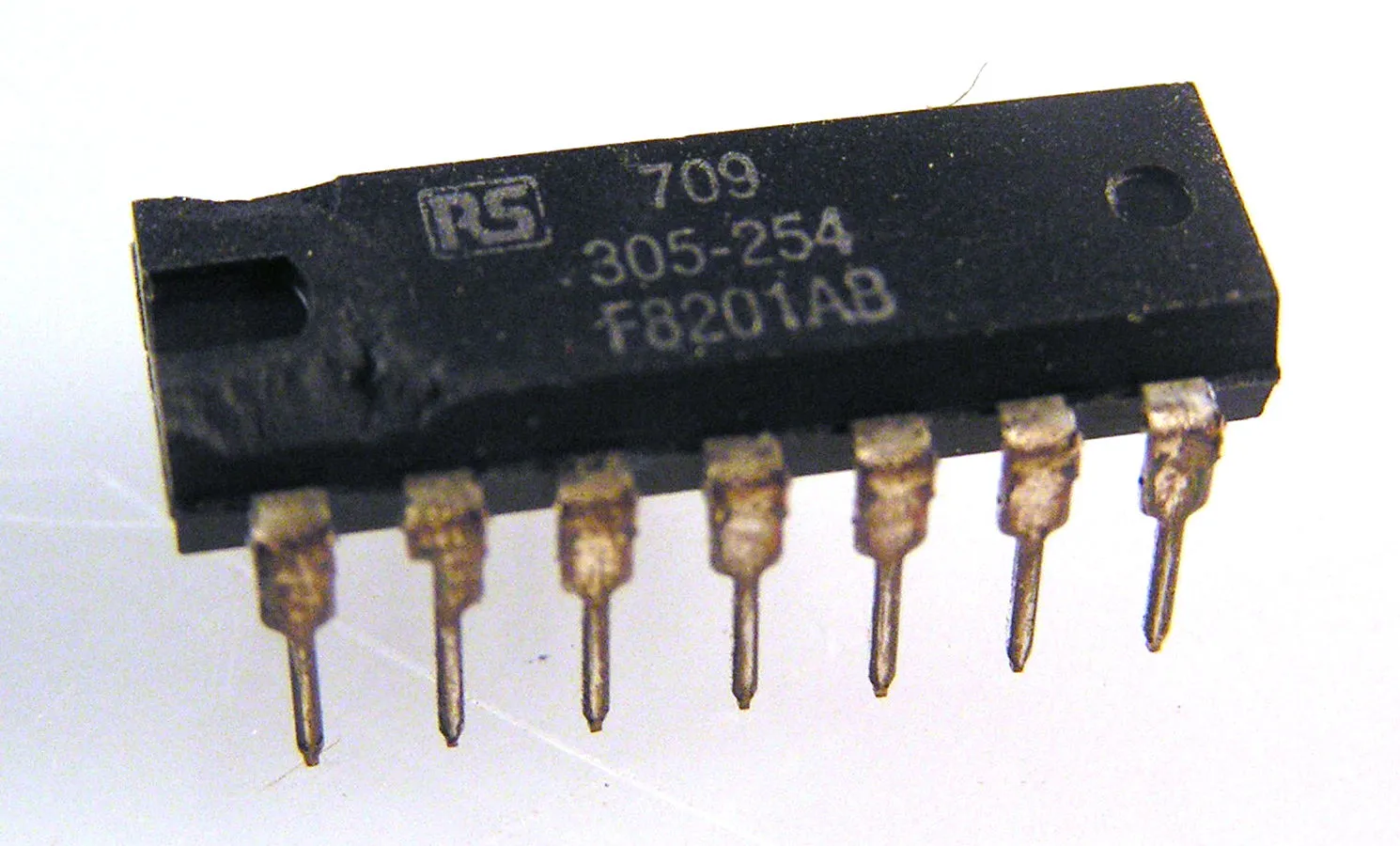

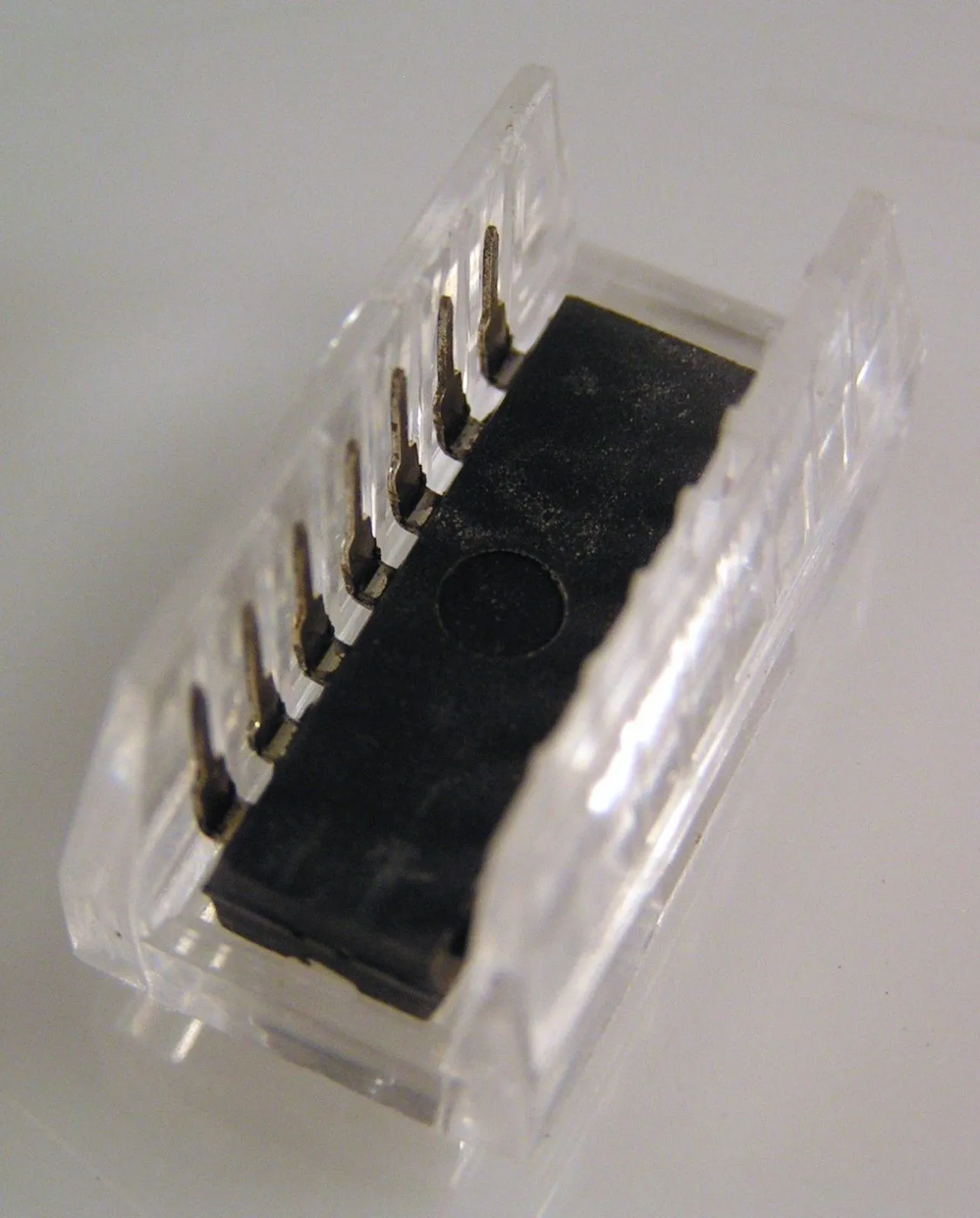

These are genuine RS parts still in their RS chip holders (see photographs), they came to us from a large ‘milspec’ type Co. – date coded F8201AB they have been in storage for some time we have therefore classified them as ‘new other’

Now discontinued – no data is available from RS

For Nat Semi datasheet (as a guide only) copy and paste:-

http://www.ee.nsysu.edu.tw/lab/F6027/LM709%20Operational%20Amplifiers.pdf

Surplus Stock ?????

If you or your company has items similar to this, or indeed any electronic components that are surplus to requirements, please contact us – we are keen to extend our stock profile.
