CSI 24WC04J 4Kbit Serial CMOS E2PROM 8-SOIC OMS1-12N

WE ARE RICH ELECTRONICS

WE PURCHASE AND RECYCLE

SURPLUS ELECTRONIC

COMPONENTS AND EQUIPMENT!

For sale here we have the above…

1 Piece

DESCRIPTION

The CAT24WC01/02/04/08/16 is a 1K/2K/4K/8K/16Kbit Serial CMOS E2PROM internally organized as 128/256/512/1024/2048 words of 8 bits each. Catalyst’s advanced CMOS technology substantially reduces device power requirements. The the CAT24WC01/02/04/08/16 feature a 16-byte page write buffer. The device operates via the I2C bus serial interface, has a special write protection feature, and is available here in an 8-pin SOIC package.

FEATURES

■ 400 KHZ I2C Bus Compatible*
■ 1.8 to 6.0Volt Operation
■ Low Power CMOS Technology
■ Write Protect Feature
— Entire Array Protected When WP at VIH
■ Page Write Buffer
■ Self-Timed Write Cycle with Auto-Clear
■ 1,000,000 Program/Erase Cycles
■ 100 Year Data Retention
■ 8-pin SOIC

Specifications

ABSOLUTE MAXIMUM RATINGS*
Temperature Under Bias …………….. –55°C to +125°C
Storage Temperature………………….. –65°C to +150°C
Voltage on Any Pin with
Respect to Ground(1) ……….. –2.0V to +VCC + 2.0V
VCC with Respect to Ground …………… –2.0V to +7.0V
Package Power Dissipation
Capability (Ta = 25°C) ……………………………. 1.0W
Lead Soldering Temperature (10 secs) ………… 300°C
Output Short Circuit Current(2) …………………… 100mA

Or go directly to…

https://www.digchip.com/datasheets/parts/datasheet/000/24WC04-pdf.php

PLEASE NOTE!

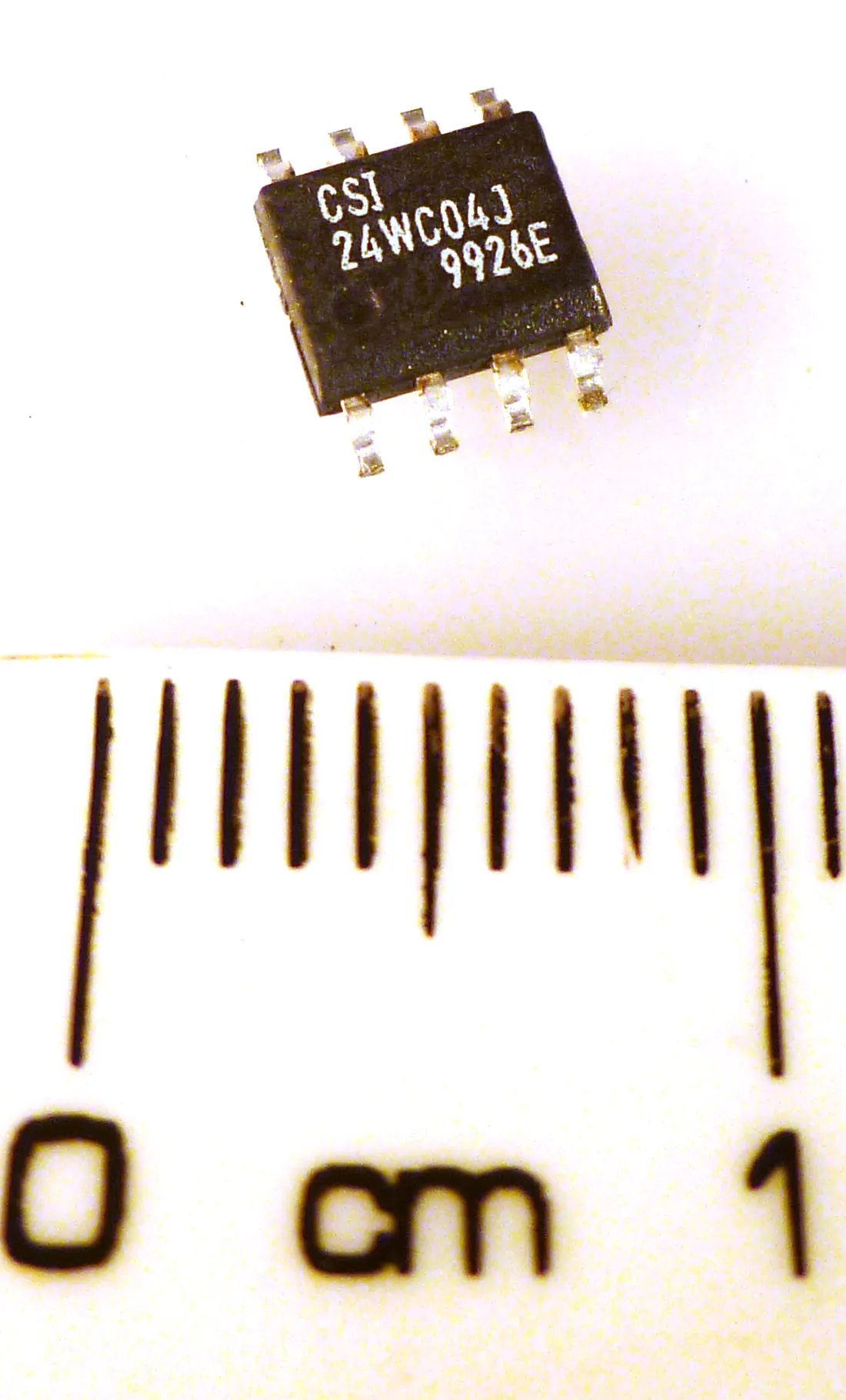

These parts came to us as part of a lot of surplus stock from a large ‘Mispec’ type Co. and have been kept in storage for some time, we have therefore classified them as ‘new other’, they are however pristine, stored with us sealed in original packaging, the photographs are representative of their general condition, being of some of our actual stock, and, as with all our products they come with a full guarantee.
